※ Click on the image to see the details of the product.

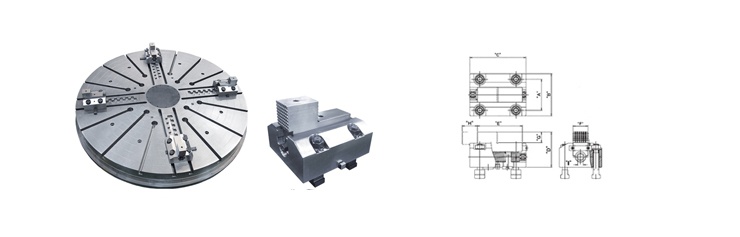

subject 2 Step Power Chuck & 2 Step Power Jaw
explain ▶ Above 32˚ is applicable and there are general type and power jaw type
▶ Powerful culting is apossible as the jaw is wide. Used mainly for roll lathe
▶ It can be used for face milling after detaching it from the chuck body
file_attachment













· Outer Diameter : Φ800 ~ Φ3000 (32inch ~ 100inch)
· Identified range : Φ230 ~ Φ2800



Standard
A
(PCD)
B
(Thikness)
C
(Overall
length)
D
(Overall
height)
E
(Jaw
Length)
F
(Jaw
width)
G
(Jaw
height)
H
(Strocke)
I
(Handle)
BOLT
standard
Screw pitch
 (thread/inch)
Items
SL100
100
150
180
135
165
50
43
30
24
Hexagon
M16
Φ40*6.0
(SL190)
190
240
180
135
165
50
43
30
24
Hexagon
M16
Φ40*60
SL125
125
170
225
142
215
60
43
50
24
Hexagon
M20
Φ42*4 thread
(SL210)
210
255
255
142
215
60
43
50
24
Hexagon
M20
Φ42*4 thread
SL140
140
200
255
142
215
60
43
50
24
Hexagon
M20
Φ42*4 thread
SL160
160
230
270
165
240
80
60
60
24
Hexagon
M24
Φ52*3.5 thread
SL180
180
250
270
195
195
80
95
75
24
Hexagon
M24
Φ52*3.5 thread
SL200
200
240
300
210
265
80
95
50
24
Hexagon
M24
Φ52*3.5 thread
SL240
240
323
420
250
245
100
95
175
24
Hexagon
M30
Φ60*3.5 thread

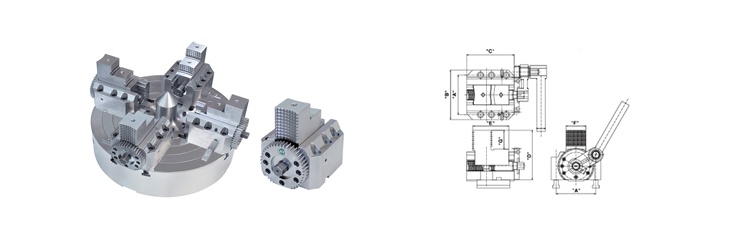

<2 STEP JAW TYPE CHUCK & JAW>

· Outer Diameter : Φ800 ~ Φ3000 (32inch ~ 100inch)
· Identified range : Φ230 ~ Φ2800


Standard
A (PCD)
B (Thikness)
C
(Overall
length)
D
(Overall
height)
E
(Jaw
Length)
F
(Jaw width)
G
(Jaw
height)
H
(Strocke)
I
(Handle)
BOLT
standard
Screw pitch
(thread/IncH)
Items
SLP125
125
170
225
142
215
60
43
50
22
Hexagon
M20
Φ42*4thread
SLP160
160
210
255
140
180
80
95
60
32
Hexagon
M24
Φ60*6.0
SLP200
200
250
240
140
185
100
70
65
32
Hexagon
M24
Φ60*3.5thread
SLP200
200
250
240
250
182
100
90
65
32
Hexagon
M24
Φ52*6.0
SLP215
215
285
325
140
265
100
70
75
32
Hexagon
M24
Φ60*3.5thread
SLP240
240
310
430
180
370
125
75
75
36
Hexagon
M30
Φ70*10
